IB036



Material
Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( DIN-CuSn6.5P0.1 )

Introduction

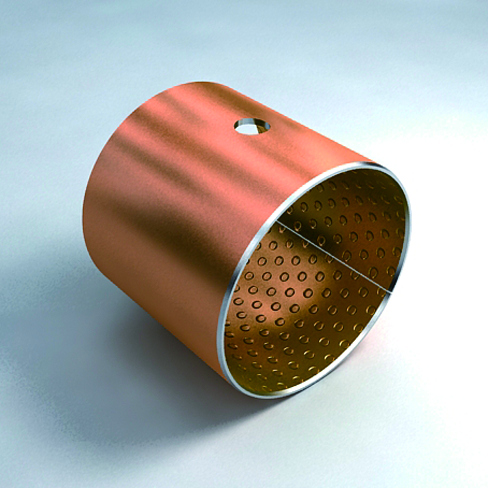

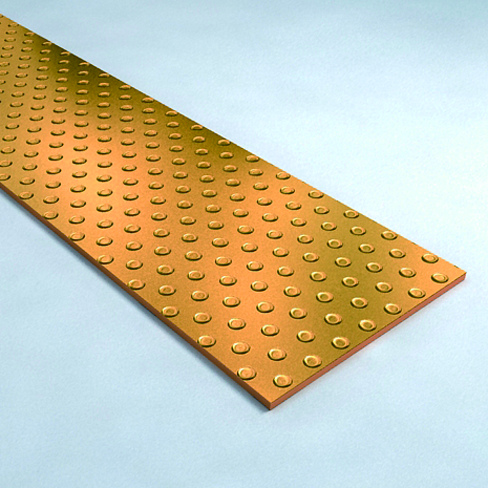

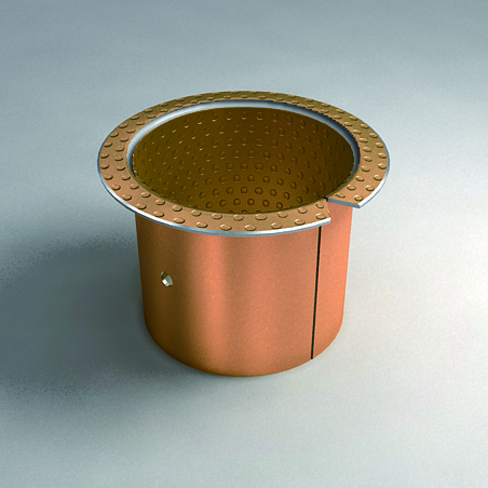

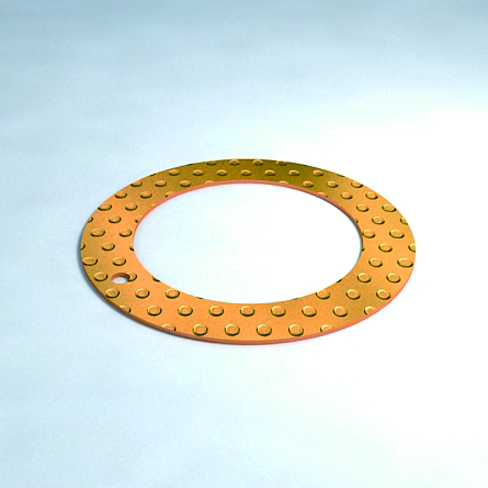

Bimetallic bearings(CuSn6.5P0.1), made of low carbon steel as base material, are produced by the process of being sintered tin bronze CuSn6.5P0.1 powder as layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive, truck, hydraulic transmission and engineering machinery due to the advantages of lead free, good wear resistance and good load capacity.

Usage



dry	poor
oil lubricated	good
grease lubricated	very good
water lubricated	poor
process fluid lubricated	poor



Physical and Mechanical Properties



max. operating temperature Tmax-greased	+150 ℃
max. operating temperature Tmax-oil lubricated	+250 ℃
min. operating temperature Tmin	-40 ℃
max. static load Psta,max	300 N/mm
max. dynamic load Pdyn,max	140 N/mm
max. sliding speed v-greased	2.5 m/s
max. PV factor-greased	2.8 N/mm2·m/s
coefficient of friction f-greased	0.05-0.12
coefficient of friction f-oil lubricated	0.04-0.12
shaft surface finish Ra	≤0.8 µm
shaft hardness-normal	＞200HB
shaft hardness-for service life＞2000 hours	＞350HB
