IB14/B



Material
Bronze net +
PTFE

Introduction

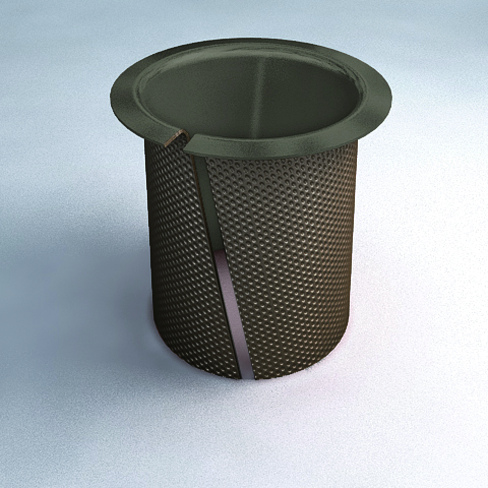

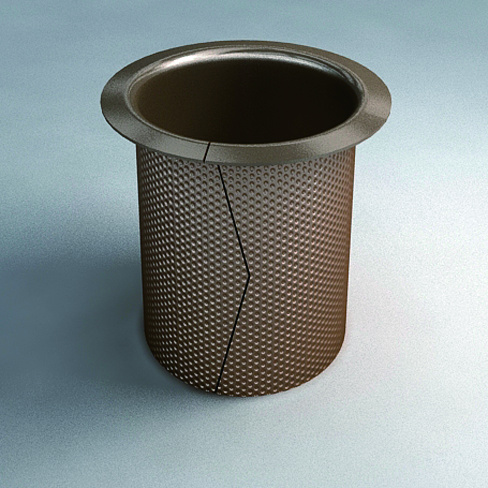

Door hinge bearings(bronze net), made of bronze net, are produced by the process of being sintered PTFE in two sides. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive door and door closer due to the advantages of lead free ,low friction coefficient, good self-lubricating and good wear resistance.

Usage



dry

  very good

oil lubricated

  good

grease lubricated

good

water lubricated

  fair

process fluid lubricated

  fair



Physical and Mechanical Properties

max. operating temperature Tmax

  +260

min. operating temperature Tmin

  -200

max. static load Psta,max

  100 N/mm

max. dynamic load Pdyn,max

  80 N/mm

max. sliding speed v

  1.0 m/s

max. PV factor

  1.0 N/mm2·m/s

max.PV Factor (short periods)

  3.0 N/mm2·m/s

shaft surface finish Ra

  0.4 µm

shaft hardness

  200HB
