IB11



Introduction

liner bearings are low cost liner motion system, and suitable for the combination of unlimited stroke and cylinder axis. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of electronic equipment, tension tester, digital controlled three-dimensional coordinate measuring equipment, multi-axis lathe, punch lathe, tool grinding machine, auto-metic gas cutting machine, printing machine, card sorting machine and food packaging machine due to the advantages of lead free, low friction coefficient, good motion precision and fast motion speed.

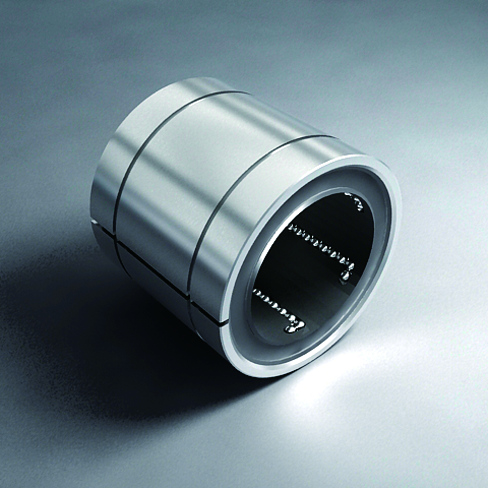

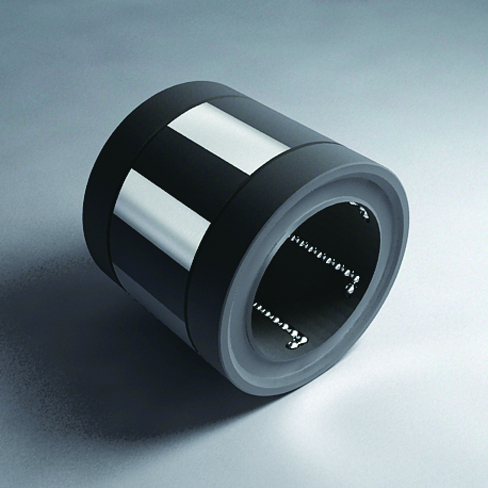

Super Linear Bushing(Self-correcting)

Features:
■ Super high load and long life.
■ Interchangeable to standard linear bushing.
■ High sliding speed and low noise.
■ Self-correcting and easy installation.
■ Erosion resistant: stainless steel ball

Type:
● LMES, LMES_OP ( mm )
● LMBS, LMBS_OP ( inch )

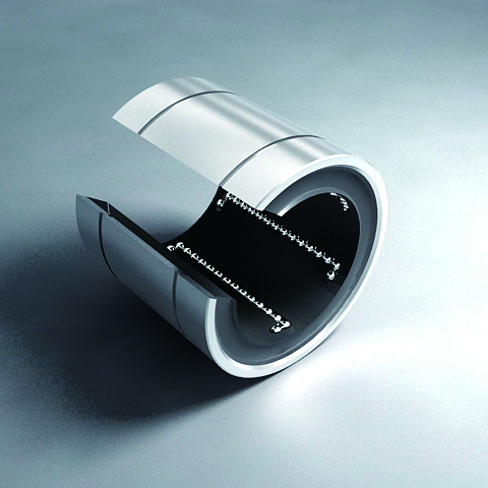

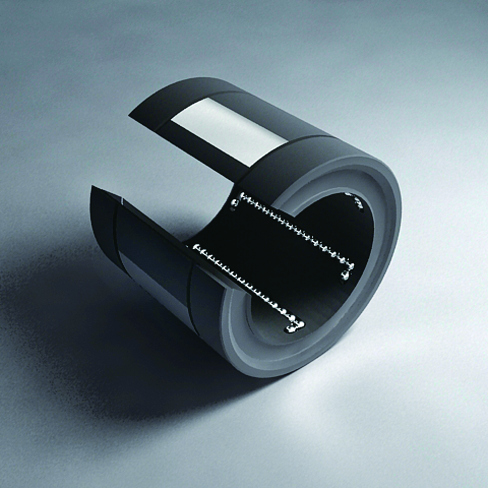

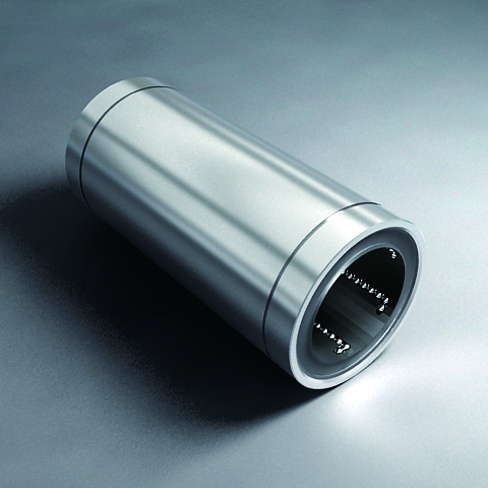

Super Linear Bushing

Features:
■ High dynamic load max. 7650N.
■ Shaft range from 5mm to 60mm.
■ Low friction.
■ Cage material: plastic & steel.
■ Erosion resistant: stainless steel ball.

Type:
● LM, LM_OP, LM_AJ, LM_L ( Asia standard )
● LME, LME_OP, LME_AJ, LME_L
( European standard ).

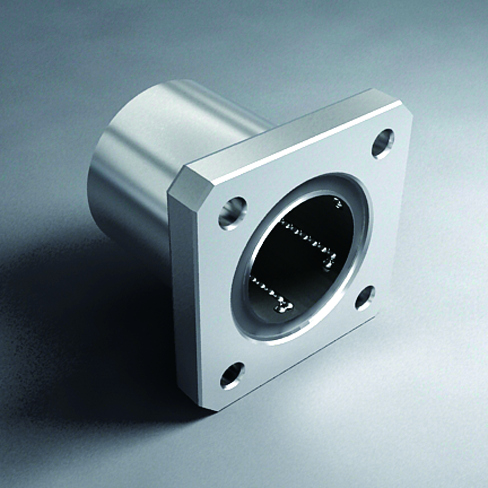

 Flanged Linear Bushing

Features:
■ Different designations.
■ Easy installation.
■ Cage material: plastic & steel.
■ Erosion resistant: stainless steel ball.

Type:
● LMES, LMES_OP ( mm )
● LMBS, LMBS_OP ( inch )

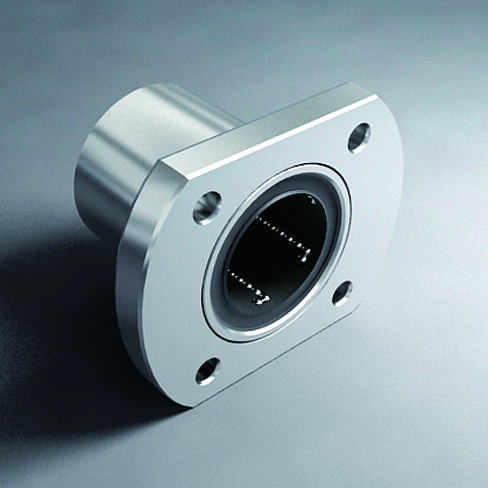

Protuberant Flanged Linear Bushing

Features:
■ Different designations.
■ Easy installation.
■ Cage material: plastic & stee.l
■ Erosion resistant: stainless steel ball.

Type:
● LMFP_L, LMKP_L, LMHP_L
( Asia standard )
● LMEFP_L, LMEKP_L
( European standard )

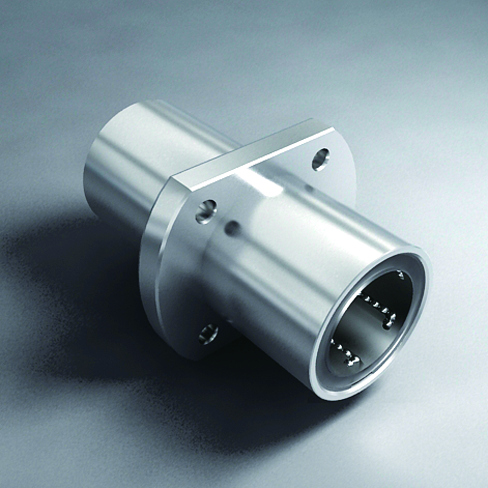

Middle Flanged Linear Bushing

Features
■ Different designations.
■ Easy installation.
■ Cage material: plastic & steel.
■ Erosion resistant: stainless steel ball.

Type
● LMFM, LMKM, LMHM ( Asia standard )
● LMEFM, LMEKM ( European standard )

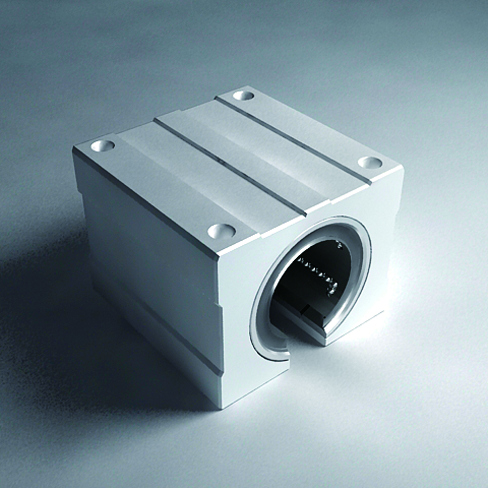

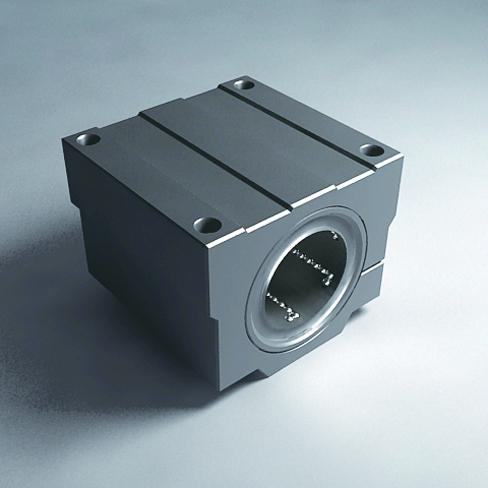

Aluminum Case Unit

Features
■ Aluminum case can contain linear bushing
or super bushing.
■ Light and High precision.
Type
● SC, SC_V, SC_W, SCJ ( Asia standard )
● SCE, SCE_V, SCE_W ( European standard )

Aluminum Case Unit ( Open )

Features
■ Made from open aluminum case and
open linear bushing.
■ Light.
■ Use together with sliding rail.

Type
● Type: SBR, TBR
( Asia standard, European standard )
