IB092



Material
Bronze ( DIN-CuSn8P )



Introduction

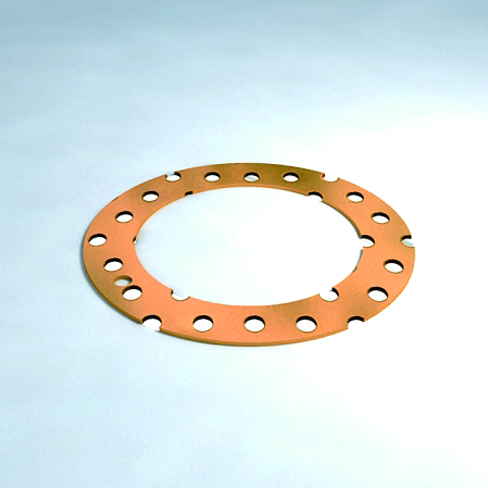

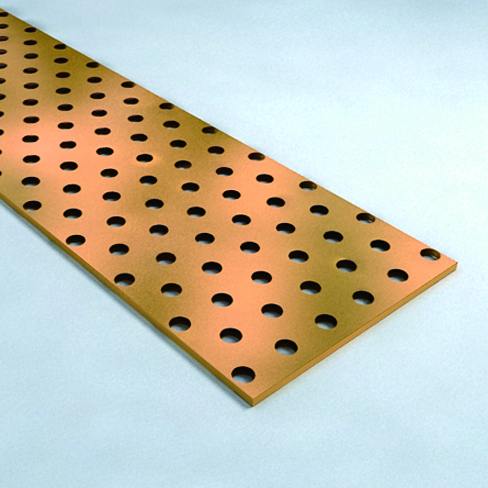

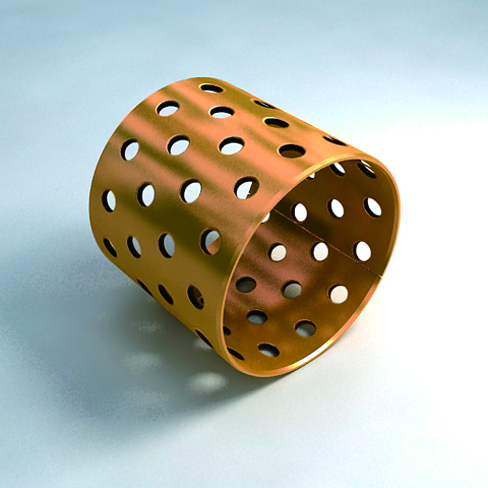

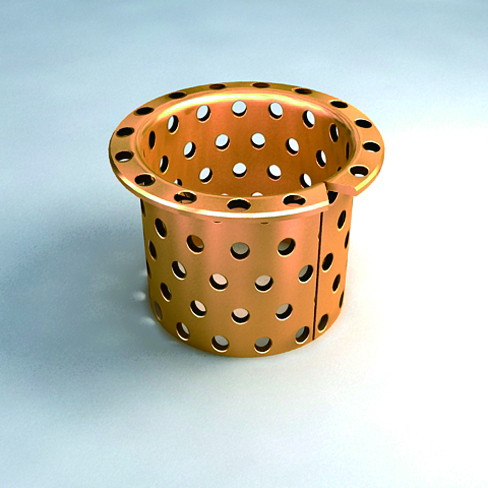

Wrapped bronze bearings(CuSn8P/oil holes), made of high density tin bronze CuSn8P as base material, are produced by the process of being rolled lubrication holes. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of automotive, truck, hydraulic transmission, engineering machinery and agricultural machinery due to the advantages of lead free, low friction coefficient, good wear resistance, good fatigue resistance, good corrosion resistance and good load capacity.

Physical and Mechanical Properties

density

 8.8 g/m3

thermal conductivity

  58 W/m·k

max. hardness

 160 HB

tensile strength

 580 N/mm2

elongation

 20 %
