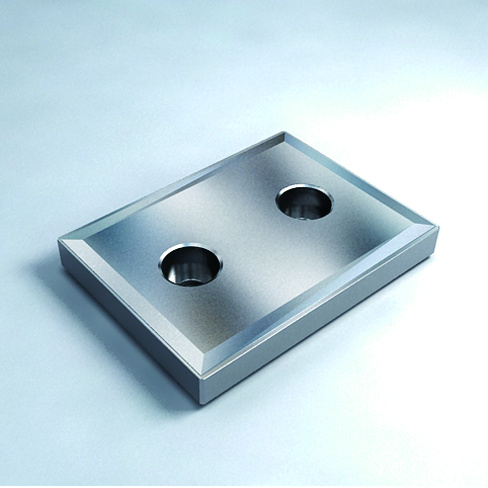

IB074



Material

Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( CuFeNi ) +
Solid Lubricant ( MoS2 + Graphite )

Introduction
Self-lubricating bimetallic wear plates(steel/CuFeNi),made of low carbon steel as base material, are produced by the process of being sintered nickel iron bronze CuFeNi powder which distributed solid lubrication as layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of mold and metallurgy due to the advantages of low friction coefficient, good self-lubricating, good corrosion resistance, high working temperature and good load capacity.

Usage



dry	good
oil lubricated	good
grease lubricated	very good
water lubricated	good
process fluid lubricated	good



Physical and Mechanical Properties



max. operating temperature	+120 ℃
min. operating temperature	-40 ℃
max. sliding speed coefficient-dry	0.5 m/s
max. sliding speed v-dry	1.0 m/s
max. sliding speed PV Factor-dry	1.63 N/mm2·m/s
max. sliding speed PV Factor-oil	2.45 N/mm2·m/s
