IB073

 Material

Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( CuSnPb )
Solid Lubricant ( MoS2 + Graphite )

Introduction

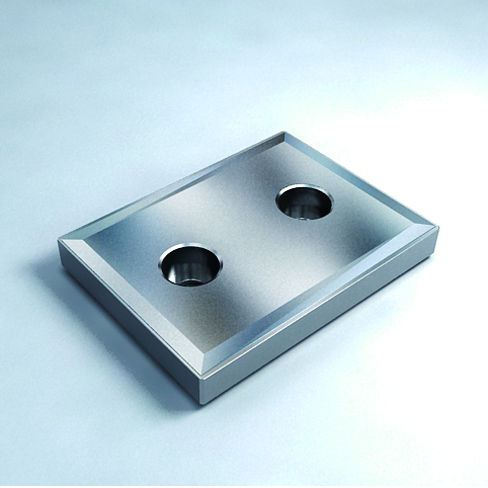

Self-lubricating bimetallic wear plates(steel/CuSnPb), made of low carbon steel as base material, are produced by the process of being sintered lead bronze CuSnPb powder which distributed solid lubrication as layer. They are widely used in the applications of mold and metallurgy due to the advantages of low friction coefficient, good self-lubricating and good load capacity.

Usage



dry

  good

oil lubricated

  good

grease lubricated

 very good

water lubricated

 good

process fluid lubricated

 good



Physical and Mechanical Properties

max. operating temperature

 +120

min. operating temperature

 -40

max. sliding speed coefficient-dry

 0.5 m/s

max. sliding speed v-dry

 1.0 m/s

max. sliding speed PV Factor-dry

 1.63 N/mm2·m/s

max. sliding speed PV Factor-oil

 2.45 N/mm2·m/s
