IB023



Material
Steel ( DIN-St12|ASTM-A366/A366M-97|JIS-SPCC ) +
Bronze ( CuSn8Zn3 )
PEEK + PTFE + Filers

Introduction

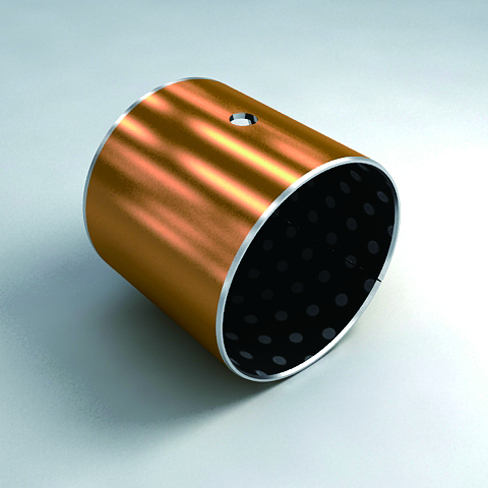

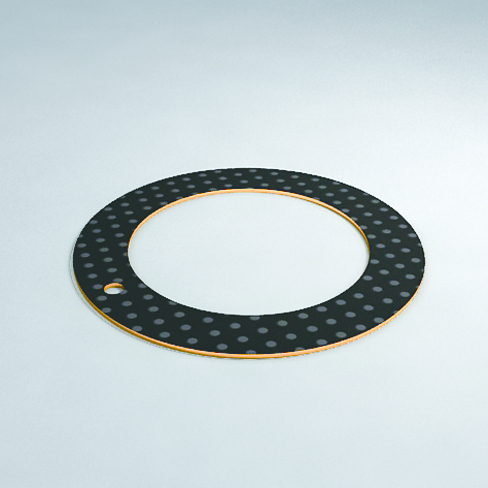

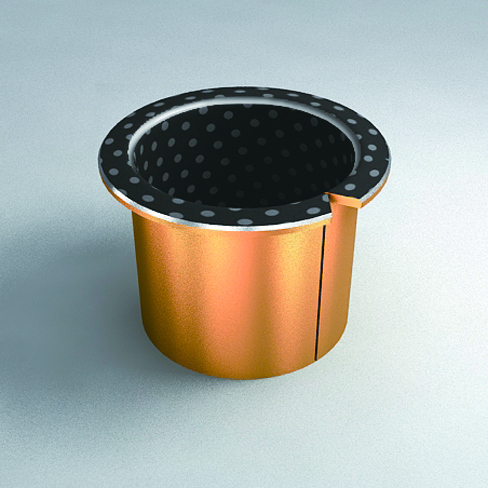

Marginally lubricated bearings(black PEEK), made of low carbon steel as base material, are produced by the process of being sintered bronze powder as medium layer and coated black PEEK for higher working temperature as lubrication layer. They are in conformity with the European RoHS environmental protection standards and widely used in the applications of hydraulic motor, agricultural equipment and wind power equipment due to the advantages of lead free, low friction coefficient, good self-lubricating, good wear resistance and high working temperature.


Usage



dry

  fair

oil lubricated

  good

grease lubricated

  very good

water lubricated

  good

process fluid lubricated

  good



Physical and Mechanical Properties

thermal conductivity λ

  52 W/mK

max. operating temperature Tmax

  +250

min. operating temperature Tmin

  -150

compressive yield strength δc

  380 N/mm

max. static load Psta,max

  140 N/mm

max. dynamic load Pdyn,max

  100 N/mm

max. sliding speed v-oil lubricated

  10.0 m/s

max. sliding speed v-greased

  2.5 m/s

max. PV factor-greased

  2.8 N/mm2·m/s

coefficient of friction f-oil lubricated

  0.03-0.08

coefficient of friction f-greased

  0.08-0.12

shaft surface finish Ra

  0.4 µm

shaft hardness-normal

  200HB

shaft hardness-for service life2000 hours

  350HB
